Working on setting up an application that needs to invite extneral users into our Azure Active Directory (AAD) tenant. Easy enough right? Mostly, maybe. Manually inviting users from the Azure portal is easy from the AAD user blade. Click ‘New User’ and select the option to invite external users. Full in an email address and some basic config and it works, it does. My problem comes from the email the external user receives by default.

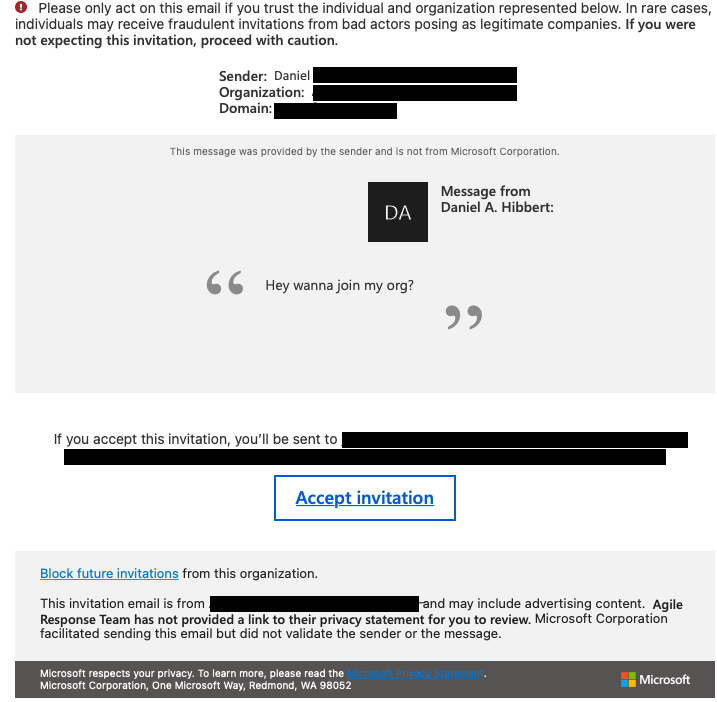

Look at this thing 🤮. Line after line of small detailed text. Text that is easy to understand and not at all scary (/s). No branding for the source organization or application. For my uses the default email is a non-starter.
That fact got me headed down the road to find what options are available to invite extneral users into AAD.
- Without the need to manually create invitations through the Azure portal.
- Send an email notification with organization and application branding with a link to complete the B2B onboading process.
Thankfully, the search did not take that long. Combining the Microsoft Graph API with an Azure LogicApp will cover all my bases.
Microsoft Graph
For the first part of the solution we turn to a favorite, the Microsoft Graph API. Using the Invitation Manager methods in Microsoft Graph enables me to automate the creation of an invitation, and manage additional option in the process.
Invitation Manager
Invitation Manager will take care of creating the invite. The cool, and useful part is this process is the option to choose not to sending the default invitation email. Instead you are provided the redemtion URL to do with as you please.
Example payload
An example of the request payload to Microsoft Graph to create an invitation.
{
"inviteRedirectUrl": <SOME URL>,
"invitedUserDisplayName": Joe P. Public,
"invitedUserEmailAddress": Joe@public.something,
"sendInvitationMessage": false
}
| inviteRedirectUrl | The URL the user will be redirect to after the invitation is accepted, and onboarding is complete. Can be any URL that you want to send the user to, does not have to be a Microsoft site. |
| invitedUserDisplayName | External user display name |
| initedUserEmailAddress | External user email address |
| sendInvitationMessage | [true:false] Send invitation email to external user? (We want to say False) |
Example response
The response back from Graph.
HTTP/1.1 201 Created
Content-type: application/json
{
"@odata.context": "https://graph.microsoft.com/v1.0/$metadata#invitations/$entity",
"id": "7b92124c-9fa9-406f-8b8e-225df8376ba9",
"inviteRedeemUrl": "https://invitations.microsoft.com/redeem/?tenant=04dcc6ab-388a-4559-b527-fbec656300ea&user=7b92124c-9fa9-406f-8b8e-225df8376ba9&ticket=VV9dmiExBsfRIVNFjb9ITj9VXAd07Ypv4gTg%2f8PiuJs%3d&lc=1033&ver=2.0",
"invitedUserDisplayName": "Fabrikam Admin",
"invitedUserEmailAddress": "admin@fabrikam.com",
"resetRedemption": false,
"sendInvitationMessage": false,
"inviteRedirectUrl": "https://myapp.contoso.com",
"status": "Completed",
"invitedUser": { "id": "243b1de4-ad9f-421c-a933-d55305fb165d" }
}
The important parts of this response we need for the next step(s) are:
| inviteRedeemUrl | URL to accept the invitation request |
Logic App
Tying it all together with one of my favorite tools from the bag, an Azure Logic App. The Logic App can host all of the calls between services, generating a custom email, and sending everything out to the intended recipient.

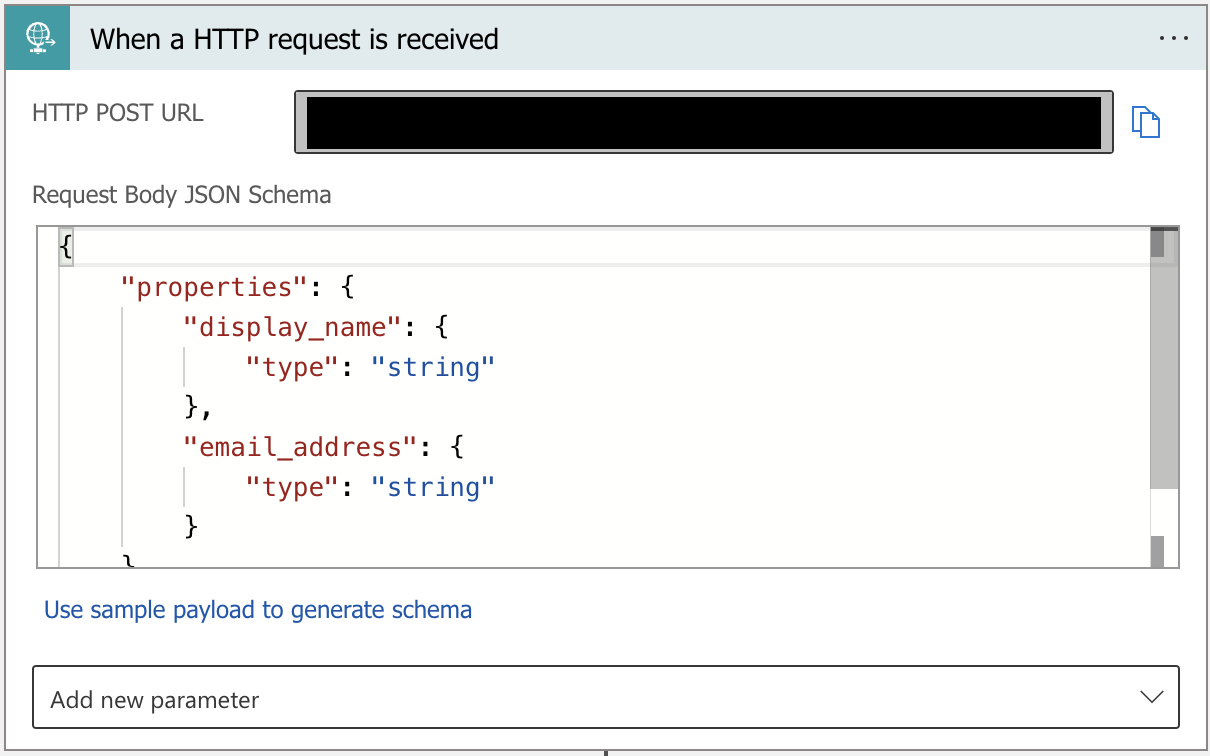

Trigger

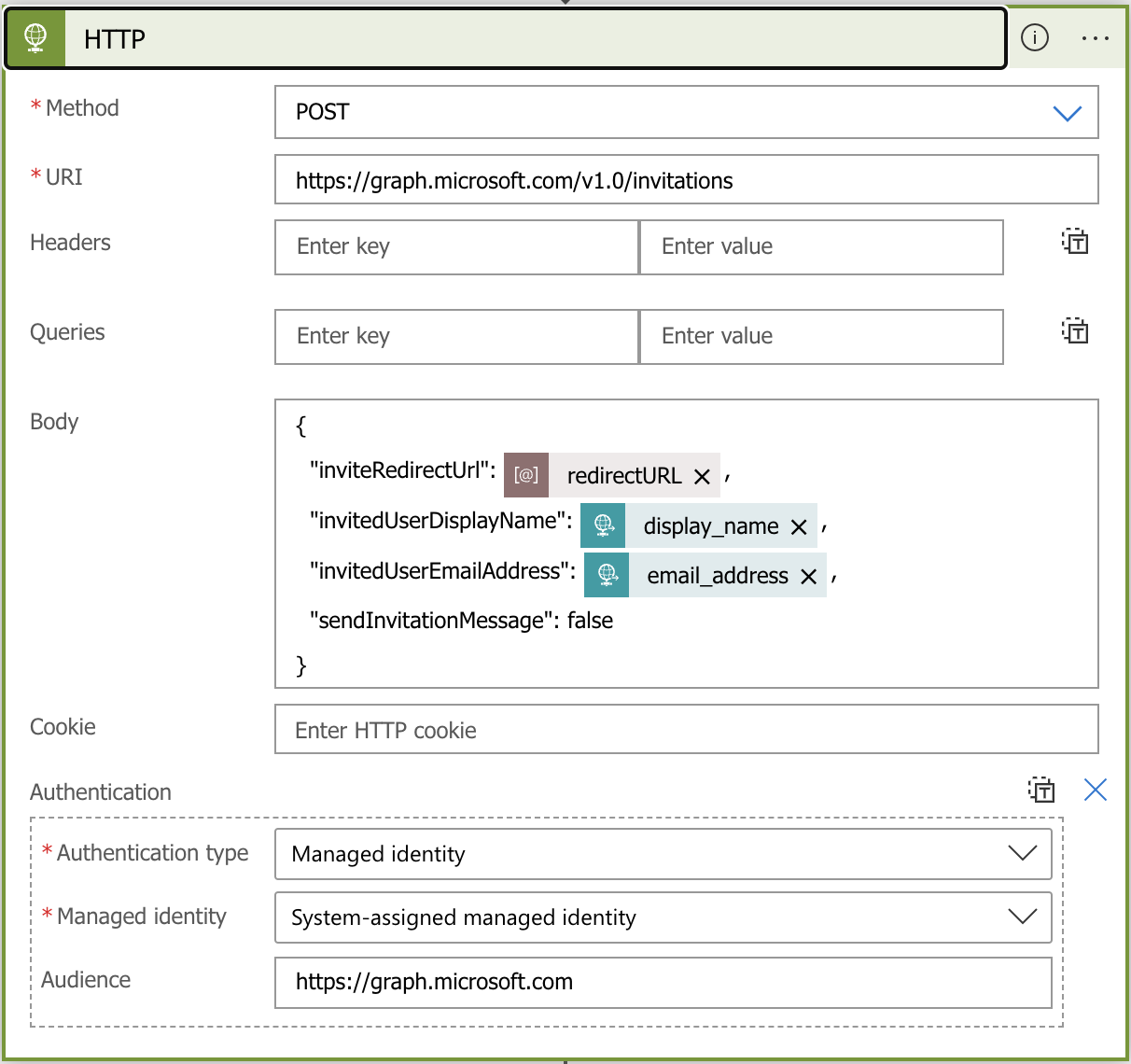

Create Invitation
| Method | POST |
| Body | Parsed information from the incoming HTTP request to create the basic request to Microsoft Graph |
| Authentication | You can use several different authentication methods. In my case I wanted to make this easy to manage into the future so I used a system-assigned managed identity assigned to the Logic App |
Permissions
It’s important to not forget the required permissions to use Microsoft Graph to create invitations.
| Permission Type | Permission |
|---|---|
| Application | User.Invite.All, User.ReadWrite.All, Directory.ReadWrite.All |

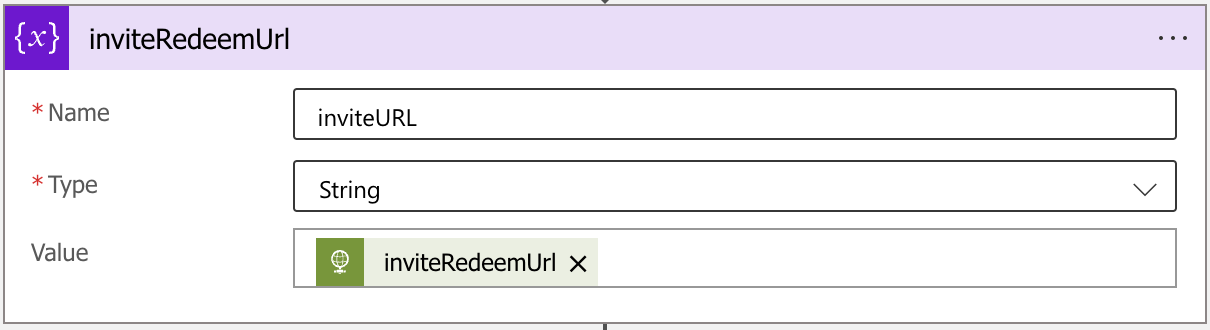

Invite URL Variable
Create a variable task to capture the ‘inviteURL’ from the Microsoft Graph HTTP response. The variable will be used in the follow step to update the body of the email.

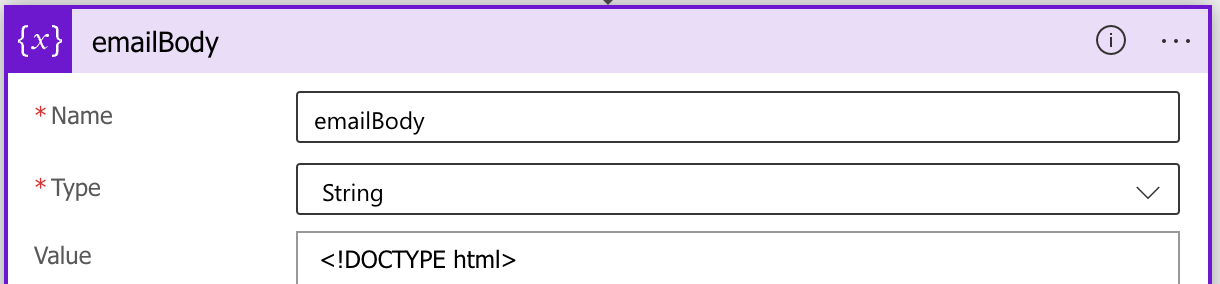

Generate Invitation Email
I use Logic App Variable task to define and modify the HTML for the email box. The HTML and previous variables are merged together and ready to use in the next step.
| Name | unique variable name, i used ‘emailbody’ |
| Type | String |
| Value | HTML block for the email body. With includes for the inviteURL (@{variables(‘ inviteURL’)}) |
<tr>
<td class="bg_dark email-section" style="text-align:center;">
<div class="heading-section heading-section-white">
<h2>Welcome to TEAM</h2>
<p>
Welcome to the Team technical demo and showcase environment. Accept the invitation below to complete the onboarding process.
you will automatically be directed to our catalog when finished.
</p>
</div>
</td>
</tr>
<tr>
<td class="bg_white email-section">
<div class="heading-section" style="text-align: center; padding: 0 30px; font-size: 30px;">
<a href="@{variables(' inviteURL')}" target="_blank" class="btn btn-primary h2">Accept invitation</a>
</div>
</td>
</tr>
<tr>
<td class="bg_white email-section">
<div class="heading-section" style="text-align: center; padding: 0 30px;">
<span class="subheading">Contact</span>
<p>If there are any question please contact the team.</p>
<a href="mailto:#" class="btn">Email TEAM</a>
</div>
</td>
</tr>
This block is only the HTML that contains the inputs from the Logic App workflow. I used a started template from Bootstrap Email and added my bits where needed.

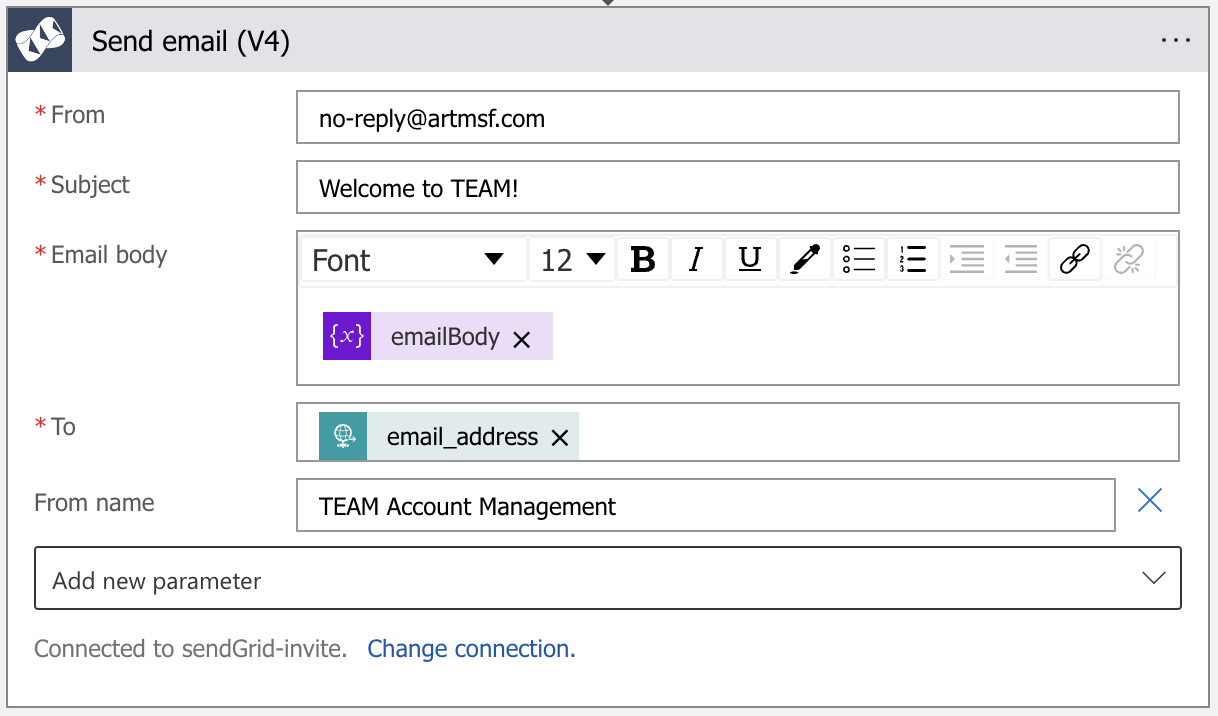

Send Email
The SendGrid Send Email services built-in to Azure includes Logic App tasks that can send email with out all of the extra headache of try and manage sending email on its own. There are additional steps required to get your SendGrid account up and running before you can use the tasks. Follow the steps and create an API key, that will be used to authorize the task.
I put this together just before the release of the Azure Communication Email Service. There are logic app tasks now available for the new service, and they look a bit easier. Shouldn’t be a problem to swap one for the other. I just haven’t had the chance.
Wrap it all Up

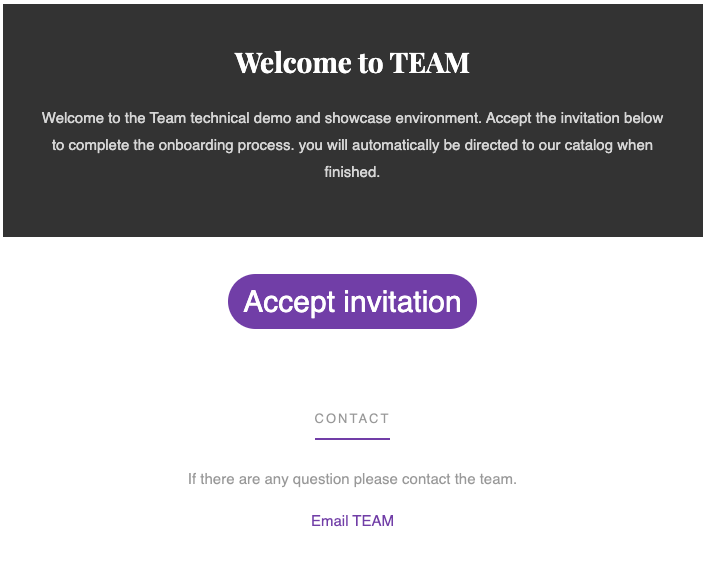

With all of those peices in place we get a customer email invetation sent off to the external user. Which can be customized to your organization, or application.
From here we have out own API for creating invitations. The next step is to create a front end that calls the Logic App to initial the process. That front end can be anything.
